Candle Bollard / CN B 8L70-830 RSC CL1 MPL ANT

96679078

▼ Datablad

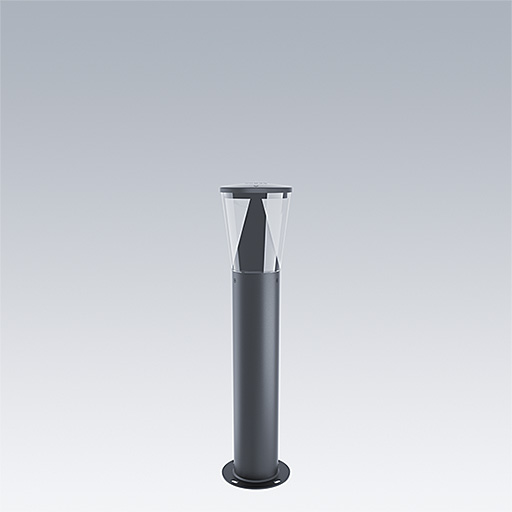

Pullert, der tager hensyn til miljøet, med begrænset opadvendt lysemission med 8 LED'er, der drives ved 700mA med Radial symmetrisk komfort lysfordeling. Uden dæmpefunktion LED-driver. Isolationsklasse I, IP66, IK10. Sokkel: trykstøbt aluminium (EN AC-44300). Finish: pulverlakeret aluminium, teksturiseret antracit (tæt på RAL7043). Afskærmning: UV-stabiliseret klar polycarbonat. Flangemonteret. Komplet med 3000K LED.

Dimensioner: Ø234 x 1017 mm
Luminaire input power: 19 W
Vægt: 7,98 kg
Vindfladeareal: 0.06 m²
Armaturvirkningsgrad: 91 lm/W

Mode selection
  • Lyskildeposition:STD – standard
  • Lyskilder:LED
  • Lysudbytte fra armatur*:1734 lm
  • Armaturvirkningsgrad*:91 lm/W
  • Colour Rendering Index min.:80
  • Forkobling:1 x 28004655 LCO 24/200-1050/39 o4a NF C EXC3
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):5
  • Rated median useful life*:L90 100000 h at 25 °C
  • Luminaire input power*:19 W Effektfaktor = 0,98
  • Dæmpning:FIX
  • LED
  • CE
  • GLedReP
  • IK10
  • IP66
  • Coastal_C5
  • LLedReP
  • SC1
  • Ta=25

▼ Lysfordeling

Fotometrisk konfiguration
