  • Axyl Flood — AXYL FLOOD S 56L 927 AS HFX ANT

Axyl Flood / AXYL FLOOD S 56L 927 AS HFX ANT

96801558

▼ Datablad

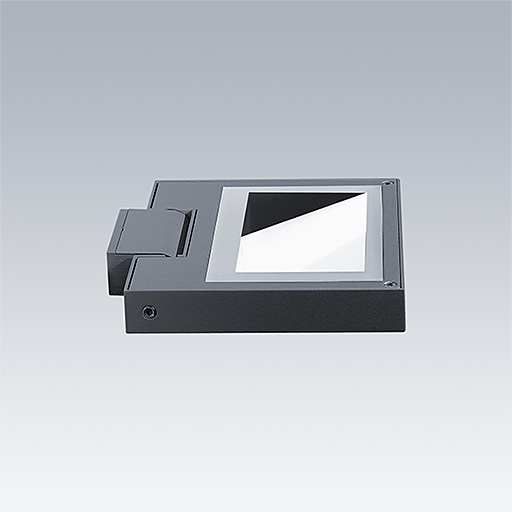

Axyl Flood, et lysdiodearmatur projektør til område- og facadebelysning, med asymmetrisk fordeling. Isolationsklasse I.. DALI-2 m/dæmp LED-driver. IP66, Påvirkningsstyrke: IK09. Hus: trykstøbt aluminium, pulverlakeret textur antracit. Drift omgivelsestemperatur: -20°C til +40°C. Komplet med 2700K LED..

Dimensioner: 220 x 34 x 220 mm
Luminaire input power: 18,6 W
Lysudbytte fra armatur: 2037 lm
Armaturvirkningsgrad: 110 lm/W
Vægt: 2,75 kg

Mode selection
  • Lyskildeposition:STD – standard
  • Lyskilder:LED
  • Lysudbytte fra armatur*:2037 lm
  • Armaturvirkningsgrad*:110 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Nominel brugslevetid (B10)*:L80 70000 h at 25 °C
  • Forkobling:1x LED_DRV
  • Luminaire input power*:18,6 W Effektfaktor = 0,97
  • Dæmpning:Dali2Dim dæmpbar til 1%
  • LED
  • CE
  • IK09
  • IP66
  • SC1*

▼ Lysfordeling

Fotometrisk konfiguration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Trin 1: Tekniske data
(lm)
(m)
(m)
(%)
Trin 2: Rum data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
