  • Axyl Flood — AXYL FLOOD M 126L 940 AS HFX BK

Axyl Flood / AXYL FLOOD M 126L 940 AS HFX BK

96801572

▼ Datablad

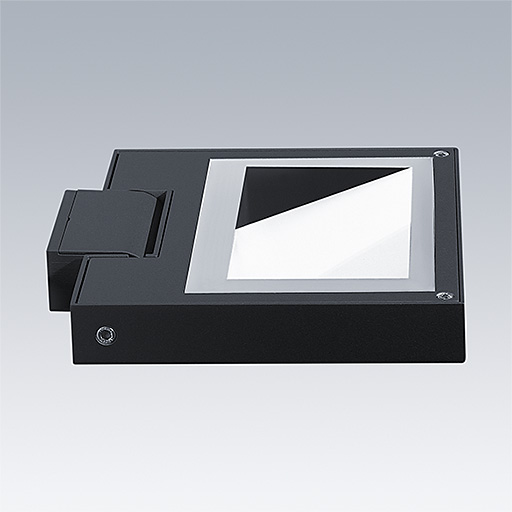

Axyl Flood, et lysdiodearmatur projektør til område- og facadebelysning, med asymmetrisk fordeling. Isolationsklasse I.. DALI-2 m/dæmp LED-driver. IP66, Påvirkningsstyrke: IK09. Hus: trykstøbt aluminium, pulverlakeret textur sort. Drift omgivelsestemperatur: -20°C til +40°C. Komplet med 4000K LED..

Dimensioner: 320 x 40 x 295 mm
Luminaire input power: 39,6 W
Lysudbytte fra armatur: 5052 lm
Armaturvirkningsgrad: 128 lm/W
Vægt: 4,54 kg

Mode selection
  • Lyskildeposition:STD – standard
  • Lyskilder:LED
  • Lysudbytte fra armatur*:5052 lm
  • Armaturvirkningsgrad*:128 lm/W
  • Colour Rendering Index min.:90
  • Correlated colour temperature*:4000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Nominel brugslevetid (B10)*:L80 70000 h at 25 °C
  • Forkobling:1x LED_DRV
  • Luminaire input power*:39,6 W Effektfaktor = 0,97
  • Dæmpning:Dali2Dim dæmpbar til 1%
  • LED
  • CE
  • IK09
  • IP66
  • SC1*

▼ Lysfordeling

Fotometrisk konfiguration
