Caelon S / CAELON S7x 700-827 N WH STD 66

21013558 / 21019120

Datablad

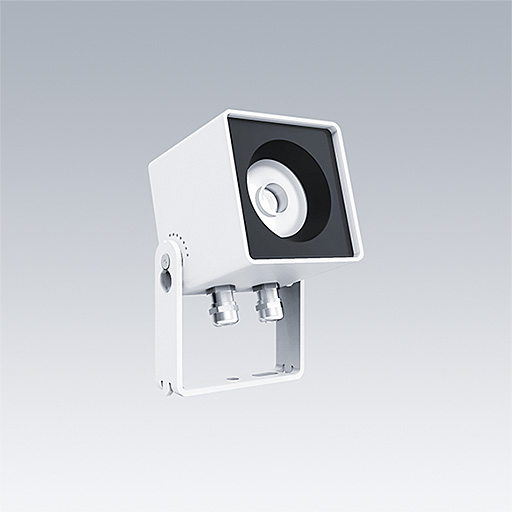

Caelon S, justerbare, påbyggede spotlights til oplysning af arkitektoniske facader, karakteristiske detaljer, nicher og strukturer. Isolationsklasse I, IP66 med. Fjerndriver kan bestilles separat. Hus: trykstøbt aluminium i hvid. Skruer i rustfrit stål. omgivelsestemperatur: -20°C til +25°C. Komplet med 2700K LED.

Dimensioner: 75 x 75 x 75 mm
Luminaire input power: 11,1 W
Lysudbytte fra armatur: 605 lm
Armaturvirkningsgrad: 55 lm/W
Vægt: 0,63 kg

Mode selection
  • Lyskildeposition:STD – standard
  • Lyskilder:LED
  • Lysudbytte fra armatur*:605 lm
  • Armaturvirkningsgrad*:55 lm/W
  • Colour Rendering Index min.:80
  • Correlated colour temperature*:2700 Kelvin
  • Chromaticity tolerance (initial MacAdam):2
  • Rated median useful life*:L70 50000 h at 30 °C
  • Luminaire input power*:11,1 W
  • LED
  • CE
  • GLedReP
  • IK06
  • IP66
  • LLedReP
  • SC1*

Lysfordeling

Fotometrisk konfiguration
