  • Chalice Pro — CHAL PRO LED2000-830 HF E3 RMB W6

Chalice Pro / CHAL PRO LED2000-830 HF E3 RMB W6

96642364 / 5037319253143

▶Skift konfiguration

  • Base: 96642364 — CHAL PRO LED2000-830 HF E3 RMB W6

▼ Datablad

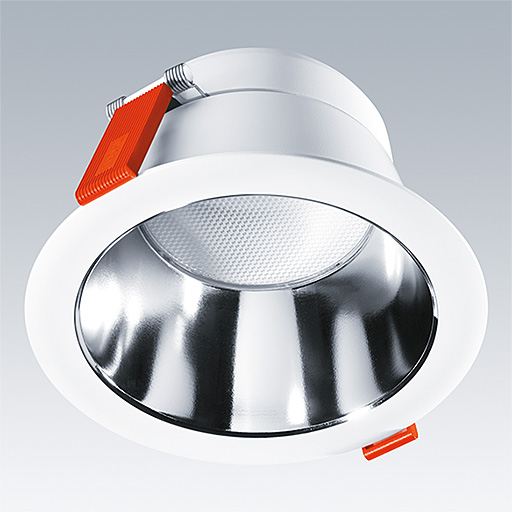

Effektiv LED downlight.. IP54/IP20, Isolationsklasse I. Armaturhus: aluminium, lakeret. Reflektor: blank. Beregnet for indbygning I lofter 1-40mm. Udskæringsmål Ø mm. Komplet med 3000K LED.

Luminaire input power: 16,3 W
Lysudbytte fra armatur: 1900 lm
Armaturvirkningsgrad: 117 lm/W

Mode selection
  • Lyskildeposition:STD – standard
  • Lyskilder:LED
  • Lysudbytte fra armatur*:1900 lm
  • Totalt lysudbytte for nødlys:250 lm
  • Armaturvirkningsgrad*:117 lm/W
  • Colour Rendering Index min.:80
  • Forkobling 1:1 x 28000699 LC 17W 250-700mA flexC SR EXC
  • Forkobling 2:1 x 89800559 EM converterLED BASIC 203 NiCd/NiMH 50V
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L90 50000h at 25°C
  • Luminaire input power*:16,3 W Effektfaktor = 0,95
  • Charging power:4 W
  • Dæmpning:FO
  • Vedligholdelseskategori:C - Lukket top reflektor
  • LED
  • CE
  • NoIsol
  • GLedReP
  • 850°
  • IK03
  • IP54_IP20
  • LLedReP
  • SC1
  • Ta=25

▼ Lysfordeling

Fotometrisk konfiguration

▼ CalcExpress

Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Trin 1: Tekniske data
(lm)
(m)
(m)
(%)
Trin 2: Rum data
(m)
(m)
(m)
(m)
(%)
Step 3: Result
(lx)
(%)
